Rent a Folsom
Image Pro HD
Los
Angeles Area, San Francisco Area, San Diego Area, Fresno
Area, Las Vegas, |
|
|
|
|

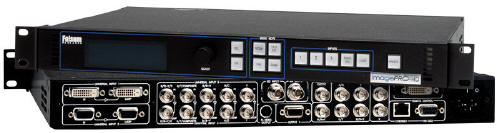

The Image
Pro HD is a Powerful all-in-one signal processor that
accept a wide range of video
input signals and process them into a number of
different signal formats. |
|
Order,
email or
Call 866-858-1174
|
System Description
Incorporating Folsom's Athena proprietary
high performance image processing technology, the ImagePRO
is available in three models; ImagePRO, ImagePRO-SDI and
our fully loaded model ImagePRO-HD.
All units are high performance video scalers, scan
converters, switchers and transcoders in one. The ImagePRO
is the ideal solution for converting RGB, HDTV, component,
s-video, composite (NTSC, PAL and SECAM), DVI, SDI and
HD/SDI into a user-selectable video format. ImagePRO
supports a wide variety of analog and digital output
formats including broadcast and VESA standards along with
many native plasma formats. ImagePRO users may also create
custom output formats to support unique display
requirements.
The ImagePRO line has an advanced feature set that
includes: universal inputs, aspect ratio conversion,
memory presets, test patterns, vertical lock (Genlock),
picture adjustments, motion adaptive de-interlacing, and
3:2 and 2:2 pulldown detection to name a few.
Features
Utilizes Athena™, Folsom's new proprietary high
performance image processing technology.
Three universal inputs accept RGBHV/RGBS/RGsB computer
video, component video (SD or HDTV), s-video, or
composite video with loop-through
Four video outputs; (2) RGB or component video, (1)
composite video, and (1) s-video
User-defined aspect ratio conversion and adjustments
Pan and zoom
Freeze
10-Bit processing
Motion Adaptive and Field to Frame de-interlacing
modes
3:2 pulldown detection for NTSC and 2:2 film detection
for PAL video sources
Decodes NTSC, PAL, and SECAM
Ethernet for real-time control
Encodes NTSC and PAL
Genlock, H/V Lock and VLock
Executive mode: protects system configuration settings
during use
64 independent memory presets
Specs
Video Input Inputs: (3) on ImagePRO,
(4) on ImagePRO with SDI and ImagePRO-HD
Universal Inputs
(3) high bandwidth video channels support RGBHV/RGBS/RGsB
computer video, component video (SD or HDTV), S-video,
or Composite video
Connectors: Input 1 and 2 on 15-pin HD connectors with
buffered loop-through. Input 3 on five BNC connectors
with buffered loopthrough
Digital Video Input:
(1) SDI input on ImagePRO-SDI model, or SDI/HDSDI
input on ImagePRO-HD
Connectors: BNC
Digital Video (DVI) Input:
(1) Input 1 on DVI-I connector supports both universal
analog and DVI input with loop-through
Input Resolution Range: VGA (640x480), SVGA(800x600),
XGA(1024x768), SXGA(1280x1024), UXGA(1600x1200), HDTV
480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170
Standard Resolution Video Input: NTSC, PAL or SECAM
Horizontal Frequency: 15 kHz to 120 kHz
Vertical Frequency: 25 Hz to 120 Hz
Input Termination: 75 Ohm
Input Sync: Sync-on-Video, Separate C or H/V
External Sync: (Genlock) Input: Blackburst, Computer
H/V Sync or C-sync.
Connectors: BNC
Video Output Outputs: (4) on ImagePRO, (5) on ImagePRO-SDI,
(6) on ImagePRO-HD
Connectors:
RGB or component video (SD or HDTV) on HD-15
RGB or component video (SD or HDTV) or composite video
on five BNC
Composite video on BNC
S-video on 4-pin mini-DIN connector
SDI on BNC, ImagePRO with SDI and ImagePRO-HD models
only, or SDI/HDSDI on ImagePRO-HD
DVI output on DVI-D connector on ImagePRO-HD model
only
Standard resolution video output: NTSC, PAL
High resolution output supported: VGA (640x480),
SVGA(800x600), XGA(1024x768),
SXGA(1280x1024),UXGA(1600x1200). For Plasma Displays
1280x768, 1365x768, 1365x1024. HDTV 480p, 720p, 1080p,
1080i. 875 RS-343, 525 RS-170. User definable video
output formats supported
Sync: RGBHV, RGBS, RGsB, TTL level, Polarity
selectable, HDTV. Tri-level Sync supported. 75 ohm
Output Impedance.
Remote Control Ethernet connection (with TCP/IP) or
RS-232 serial port for real-time control.
Physical Height: 1.5"
Width: 17" (43.2 cm) or 19" (48.3 cm) with rackmount
option
Depth: 13"
Weight: 9lbs.
Shipping Weight: 13 lbs.
Input Power 100-240 VAC, 47-63 Hz
|
|
|
|
|
|
|
A/V-Related Products
Folsom
Screen Pro
Folsom
ScreenPro Plus
20"
TV/VCR Combo Unit PANASONIC
27" TV/VCR Combo Unit PANASONIC
13" TV/VCR Combo
19" TV/VCR Combo
27" TV/VCR Combo
VCR w/Auto Repeat PANASONIC
Sony SVO-2000 SVHS HiFi Auto Repeat VCR
Sony UVW-1400 Betacam SP deck auto repeat
Pioneer DVD-7400 NTSC/PAL DVD player
1/2" VHS
1/2" Super VHS Player/Recorder
1/2" SVHS Editing Deck Pan. AG1980
1/2" VHS Player (Pal/Secam/NTSC)
1/2" VHS-C Recorder
3/4" U-matic Player/Recorder
3/4" U-matic Player (Pal/Secam)
Sony 8mm or Hi 8mm Recorder
Sony Betacam SP UVW1400 Recorder
Sony Betacam SP UVW2800 Recorder
DVD Player
DV-CAM Player/Recorder
Extron RGB-202xi
Extron P2DA6 1 in - 6 out 15pin D-sub
Extron P2DA2 1 in - 2 out 15pin D-sub
Extron 2 in / 2 out VGA switch/DA
Extron ADA 6 300 RGBHV 1 in - 6 out DA
Extron SW6VGA-AS 6 in - 1 out switcher 15pin
Folsom Screen Pro Plus
Folsom Screen Pro
Folsom Presentation Pro
Inline IN-2005 Universal Interface
Inline RGB Switcher 2-6 in -1 out
Inline VGA Switcher 2-6 - 1 out
Inline RGBHV Switcher 6 in 1 out
Inline RGBHV Amp 1 in -4 out
Inline RGB Dist Amp
Inline VGA Dist Amp
Inline IN-2067 MAC Dist. Amp
Sony DSC-1024H Scan Converter
25' RGBHV Snake
50' RGBHV Snake
75' RGBHV Snake
100' RGBHV Snake |
|
|
|
|
|
|
|
NEC
Resolution 1365x768
Aspect Ratio 16:9
Colors 68.7 billion colors
Dimensions 48.1in W 29in H 3.8in D |
50 Inch Pioneer or
NEC Plasma Displays
Take the next
step, rent a bigger display for your next event. This
display can be viewed from center isle at trade shows. This larger
size offers integrators
and designers versatile installation options to suit virtually any
application. Compare to the previous model, this model now
produces 17% less heat and has an advanced environmental tolerance
device which simultaneously reduces operating noise at 23%. The
unit, although 50 diagonal inches, is surprisingly light weight
and is one of the slimmest available on the market. With the 160
degree viewing angle, both vertically and horizontally, this
plasma panel can be viewed from almost anywhere, even across the
isles. Users can change aspect ratios from standard 4:3 to
widescreen 16:9 format to accommodate DVD presentations and
widescreen broadcasts. Screen Size 50-inch diagonal
Dimensions 48.1in W 29in H 3.8in D Plasma
Mfg. Information |
|
|
|
|
|
|
|
 |
Hitachi
37 Inch Plasma Display
High-Resolution XGA: At 1024 x 768 pixels, XGA provides pictures
nearly one and a half times as detailed as conventional VGA
images. When viewed on the 's big 37" screen with .735 x .735 mm
pixel pitch, the vivid, super-sharp XGA picture is simply
breathtaking. Plus the is compatible with virtually any video or
data source from PCs to DVDs, making it the ideal display solution
for any corporate application from tradeshows and exhibits to
presentations and training. Plasma
Mfg. Information Model: CMP307XU
Display: 37",Resolution: 1024 x 768, true
Aspect Ratio: 4:3
Screen Size: 22.2 x 29.6, Dimensions: 34.8 x 26.9 x 3.9 |
|
|
|
|
|
|
|
Cobra Plasma
Stand
 |
To the right, our standard dual post floor stand designed to
be used with any of our flat or tilting PDM series plasma
wall mounts in the horizontal or vertical display mode. The dual
2" chrome posts allow for height adjustability with
(average is 5.5 ft. in height. Optional flat accessory shelf
installed above or below the display in a front or rear-facing
mode.
To the left, our fancy cobra display with shelf.
|
Dual pole Plasma
Stand |
|
|
|
|
|
|
|
 |
NEC LCD3000
LCD TV
- 1280 x 768 resolution allows for
crisp text and precise images
- Virtually eliminates the
potential for permanent image burn-in, contributing to optimal
screen performance and longer monitor life
- XtraView® technology allows for
wide-angle viewing
- PC and video
- Detachable speakers deliver an
enhanced multimedia experience with amazing sound quality
- On Screen Manager (OSM®) puts
you in complete control of display setting adjustments
|
|
|
|
|
|
|
|
 |
The
Great Technology War: LCD vs. DLP If you are new to
the world of digital projectors, you won't have to shop around the
market very long before discovering that "LCD" and "DLP" somehow
refers to two different kinds of projectors. You might not even
know what LCD and DLP are before asking the obvious question
"which one is better?"
Want a really BIG SCREEN...then use a LCD/DLP projector and
connect your computer or even an VHS player/recorder (used as a TV
tuner) and project pictures or presentations up to 15 feet by 20
feet. (can go larger)
Projector Models for rent. |
|
|
|
|
|
Get
your quote for your next rental at
CES.ORG,
CableTV,
e3,
Infocomm,
Siggraph,
...more tradeshows, special events, meetings
and new product announcements. Offices serving
California, Burbank,
Los Angeles, West Los
Angeles. Santa Monica, Culver City,
Long Beach,
Glendale, Pasadena,
Van
Nuys,
North Hollywood,
Hollywood,
Anaheim, Irvine,
Newport Beach, Beverly Hills,
San Dimas,
Ontario,
Pomona, San Diego, Carlsbad,
Texas, Austin, Arlington,
Dallas, Fort Worth,
Houston, Atlanta, Nashville, New Orleans, Orlando,
New Jersey, New York, Manhattan, Boston, Hartford,
Philadelphia, Providence,
Baltimore, Washington DC,
Chicago,
Portland, Santa Clara, Berkley,
San Francisco, Oakland, Bay Area, San
Jose, Fresno,
Nevada,
Las Vegas, Phoenix,
Salt Lake City. Nationwide
More Cities |
|
|
|
|
|
|
|
Plasma TV Displays, LCD
Projectors, AV Equipment, Laptop, and Desktop Computer Rental Solutions
Nationwide Call 818.687.3781
|
|
3D LCD
Technology |
Rent LCD Projectors |
Polycom audio video
conference rentals |
|
|
Rent Plasma Displays
|
Specials |
|
Rent Laptop and
Desktop Computers |
Rent Sound and
Stage Equipment |
Rent Computer
Monitor and Printers |
|
View Rental
Product List
|
Rent Slide
Projectors |
Rent DV Camera |
|
Rent Lighting
Equipment |
Rent
AV Equipment
|
Rental Product List
|
|
If you are a multi-show exhibitor, we can
offer you a national account agreement that will provide one competitive
rate for equipment rentals and consistent service for all of your events
nationwide. This enables you to know your costs and budget for your
entire show schedule. We supply on-site IT & A/V technical services to
support your events or presentations anywhere you go in the U.S., thus
eliminating the logistical problems that result from having multiple
contractors.
Our services don’t end once your rental
equipment is delivered and installed. We understand that managing IT
equipment means more than just "procurement". That is why
we offer exceptional technical support and services. In addition to 24/7
support, our experienced technicians will work with you from
installation until final completion of the project.
Call
866-858-1174
or 818-687-3781 for prices
|
|
|
|
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|
